100 Packs strip light mounting brackets fixing clips, with 5 pieces L shape 4 pin connector, 100 screws included

The led clip:
Material: durable nylon, accepting 4-104 degree temp range, safe and secure to hold the strip light
Wide usage: designed for screwing into wood materials such as cabinet, wardrobe, bookcase

L shape LED strip light connector:
Material: fireproof material, high temperature resistance
Range of application: fits all 10 mm 3528/ 5050 wide RGB LED strips

Installation instructions for clips:
Shut down the power before installing the clips
Rip off the paper on the adhesive tape behind the strip light, then choose an proper place for installing the strip light.
Plan the mounting holes and make the markings, suggested using 3-6 pieces clips within 1 meter long strip lights.
Firstly putting screws through the clips and then fixed the screw in the marked mounting holes (Please be careful not to tighten it completely).
Adjust these clips so that they can coincide with the strip surface, and then continue to tighten the screw until the clip completely clamp light strip.
The unfixed side is convenient to take down the LED strip light freely when replace or maintain it.

Installation instructions for L shape connectors:
Shut down the power before installing the connectors.
Open the clip on the side.
Slid the 10 mm LED light strip inside the clip underneath the two contact prongs.
Make sure the side of the strip aligns with the "+ -" polarity.
Close the wire clip.

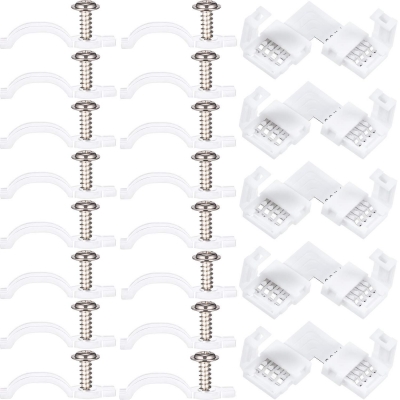

Package includes:
100 x Strip light mounting brackets
100 x Screws
5 x L shape 4 pin connector

Warm reminder:
Please shut down the power before installing the connectors.
Please peel off silicon on the surface around soldering area when installing waterproof strips.
